i-kon Blaster 3000 - Controller and Remote Reports showing N/A

A Blast Report of a Blaster 3000 Controller or Remote shows N/A information for Detonator ID, Delay and Status, if the communication between the Controller and Remote had issues while transferring blast report information.

N/A in the Controller Blast Report

Communication issues between the Controller and Remote Blaster at any stage of receiving the blast report. If the Controller misses some details, it will report all details as N/A rather than reporting partly correct information

N/A in the Remote Blast Report

If the Controller does not receive all blast report information correctly, the Remote Blaster will discard the information received from the Logger and copy the data from the Controller, showing N/A for the details.

The next firmware version will address this issue and retain the known information in the Remote Blasters report.

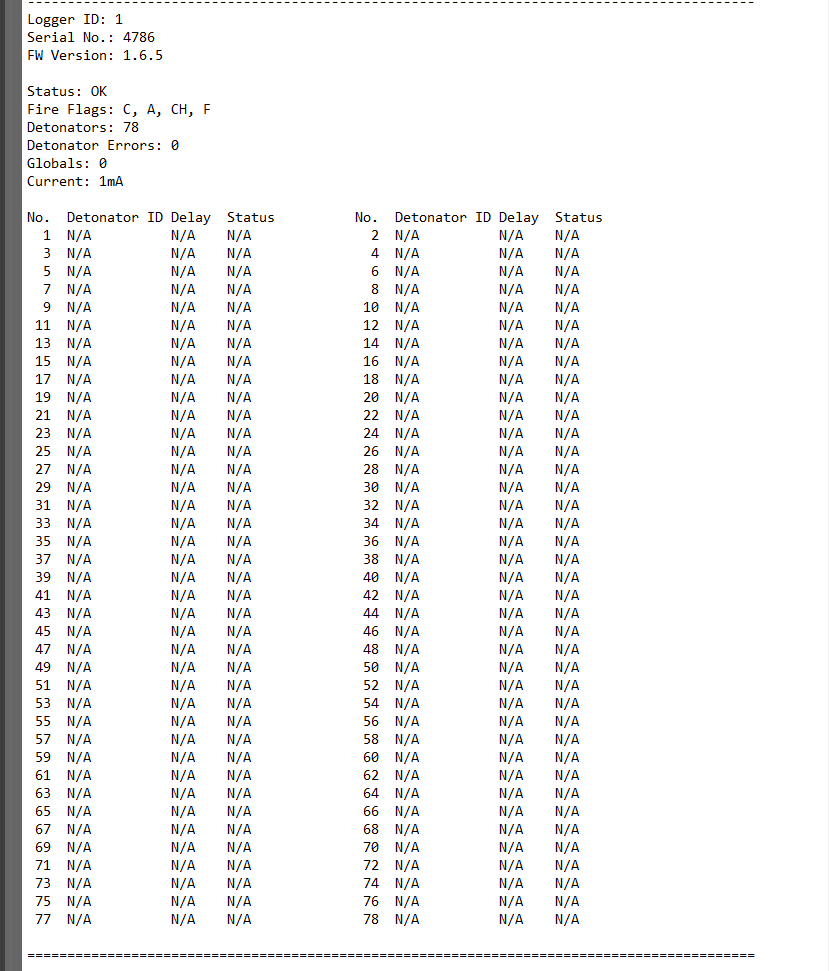

i-kon Blast Report example with N/A fro Detonator ID, Delay and Status
i-kon Blast Report Example with N/A information for Detonator ID, Delay and Status



To prevent the communication issues, please follow the instructions in the i-kon Blaster 3000 user manual regarding establishing and testing the communication > Chapter 8. Testing the Communication.


The latest i-kon user manuals are available on the SharePoint: Blaster 3000 User Manuals on SharePoint
